Throttle Valve Rexroth Interchangeable

Throttle Check Valve Z2FS 16

MANUFACTURER Genuine Huade Hydraulic
STANDARDS ISO 4401 / DIN 24340
AVAILABILITY Factory Direct Stock

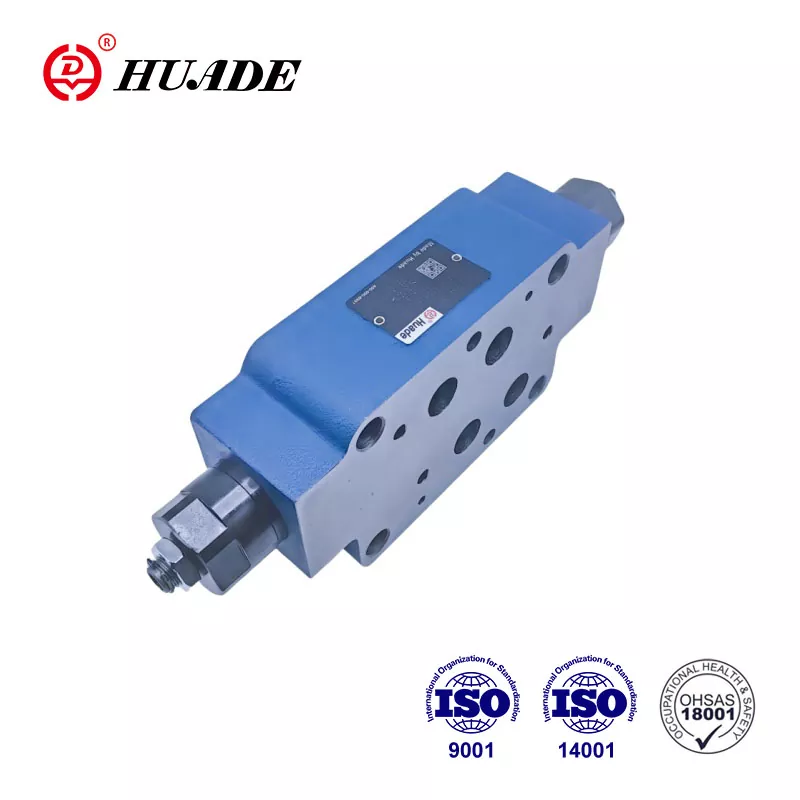

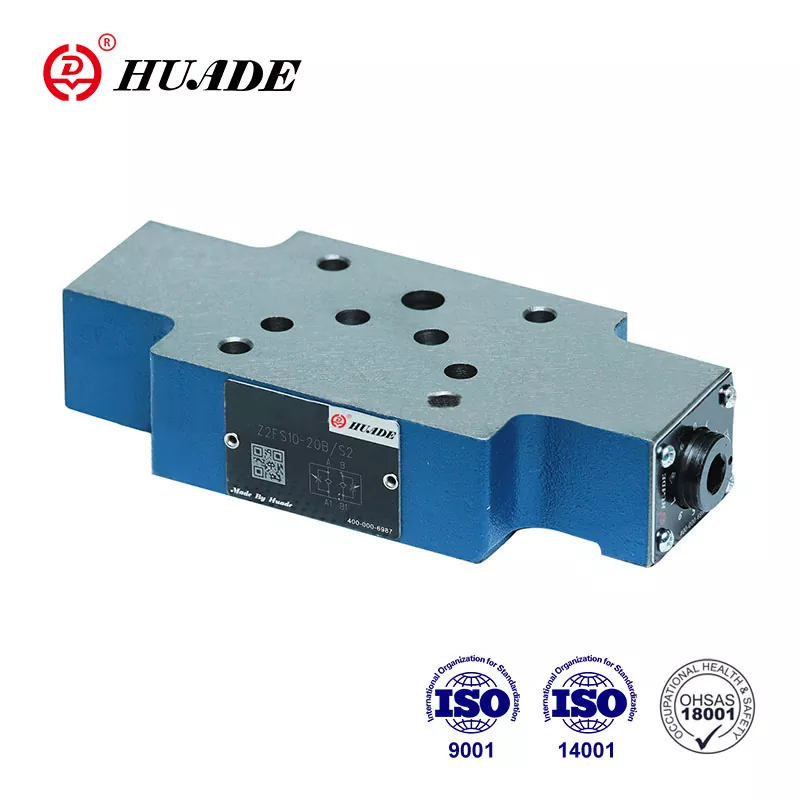

Throttle Check Valve Z2FS 16

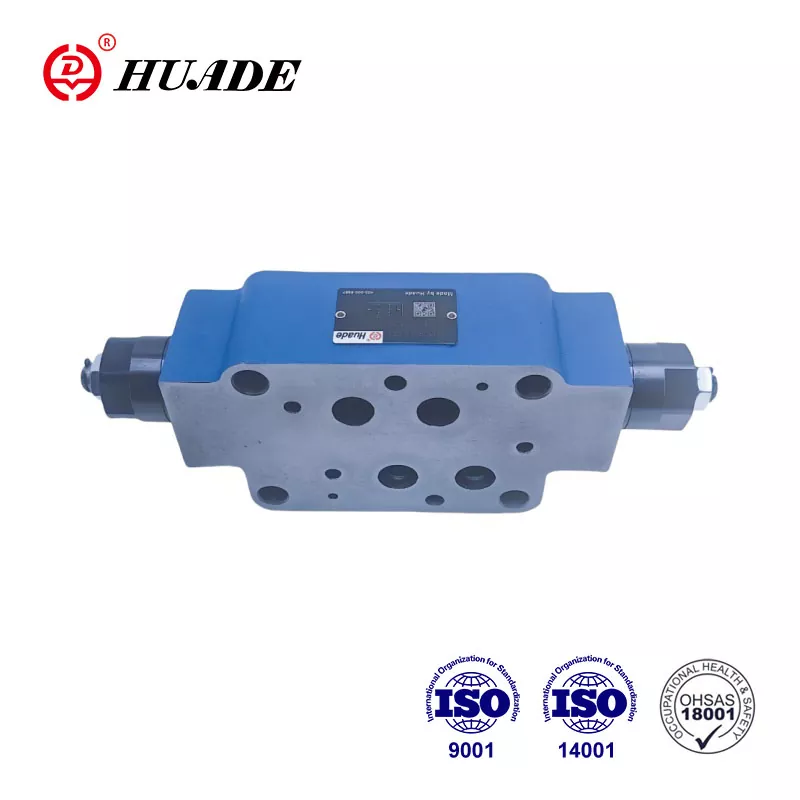

Throttle Check Valve Z2FS 16 - Image 2

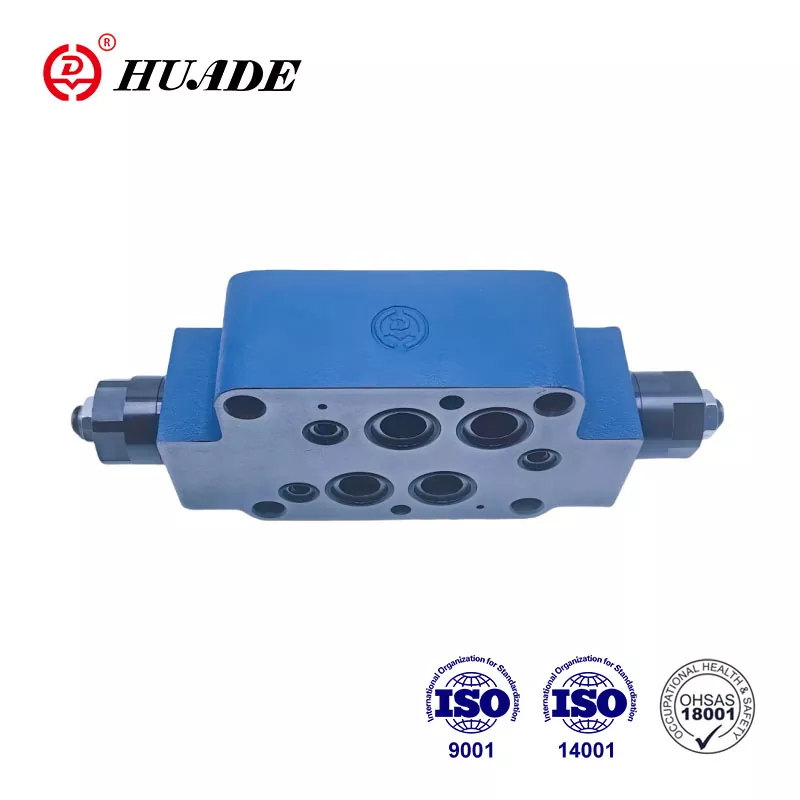

Throttle Check Valve Z2FS 16 - Image 3
TECHNICAL REPLACEMENT NOTICE

This Huade® directional control valve serves as a 100% direct drop-in replacement for Bosch Rexroth THROTTLE-CHECK-VALVE-Z2FS-16 equivalents. Dimensions, mounting interfaces, and technical parameters are identical. Designed for cost reduction in industrial and mobile hydraulic systems.

• Product features:Sandwich plate design

• Specifications: Z2FS 16 series,

• Applications: limit main or pilot oil

Request B2B Quote

Submit your target quantity and technical questions. Our hydraulic engineering team will provide a factory-direct quote and lead time estimate within 24 hours.

Send Product Inquiry → 📥 Download PDF Datasheet
💬 WhatsApp: +86-18217786775
✓
100% Genuine Huade Direct factory authorized supply
✓
ISO 4401 Mounting ISO 4401 / Rexroth interchangeable
✓
Secure Packaging Sealed rust-proof global shipping

Technical Data Sheet

  • Product Overview
  • Features & Applications
  • Technical Parameters

Product Overview

Sandwich plate design Valves type Z 2 FS 16 are double throttle/check valves. The function of this valve is to control the inlet or outlet flow. The fact that Huade®  Z 2 FS 16 can replace Rexroth®  Z2FS 16 3XB is mainly due to the long-term cooperation with Rexroth. The factory strictly controls product quality and all throttle check valves meet international standards.

Technical data (for applications outside these parameters, please consult us!)

Mineral oil(for NBR seal),or phosphate ester(for FPM seal)

Key Features

  • Sandwich plate design
  • Porting pattern to DIN 24 340, from A, ISO 4401 and CETOP - RP 121H
  • Limiting of main or pilot flow with two service ports
  • Meter-in or meter-out control.

Industrial Applications

  • Throttle check valves Z 2 FS 16 are used to limit main or pilot oil flow at one or two service ports.
  • Valves type Z 2 FS 16 are double throttle/check valves in sandwich plate design. Two symmetrically arranged throttle/check valves limit flow (by means of adjustable throttle spools) in one direction and permit free return flow in the other direction.
  • Main flow limiting
  • The double throttle/check valve is fitted between the directional valve and the subplate to change the speed of an actuator (main flow limiting).
  • Pilot flow limiting
  • In the case of pilot operated directional valves, the double throttle/check valve may be used as a pilot choke adjustment (pilot flow limiting). In this case, it is fitted between the main valve and the pilot valve.
  • Structure of Double throttle/check valve, Type Z 2 FS 16 3XB
  • Principle of Hydraulic systems

Technical Parameters

Mechanical ratings and operating limits for the Throttle Check Valve Z2FS 16:

Parameter / Dimension Name Value / Rating Specification
Technical data (for applications outside these parameters, please consult us!) Technical data (for applications outside these parameters, please consult us!)
Size - 6 - 16 22
Maximum flow (L/min) - 80 - 250 350
Maximum working pressure(MPa) - 31.5 - 35 35
Pressure fluid - Mineral oil(for NBR seal),or phosphate ester(for FPM seal) Mineral oil(for NBR seal),or phosphate ester(for FPM seal)
Viscosity range(mm ²/s) - 10 to 800 10 to 800
Fluid temperature range(℃) - -30 to+80 -30 to+80
