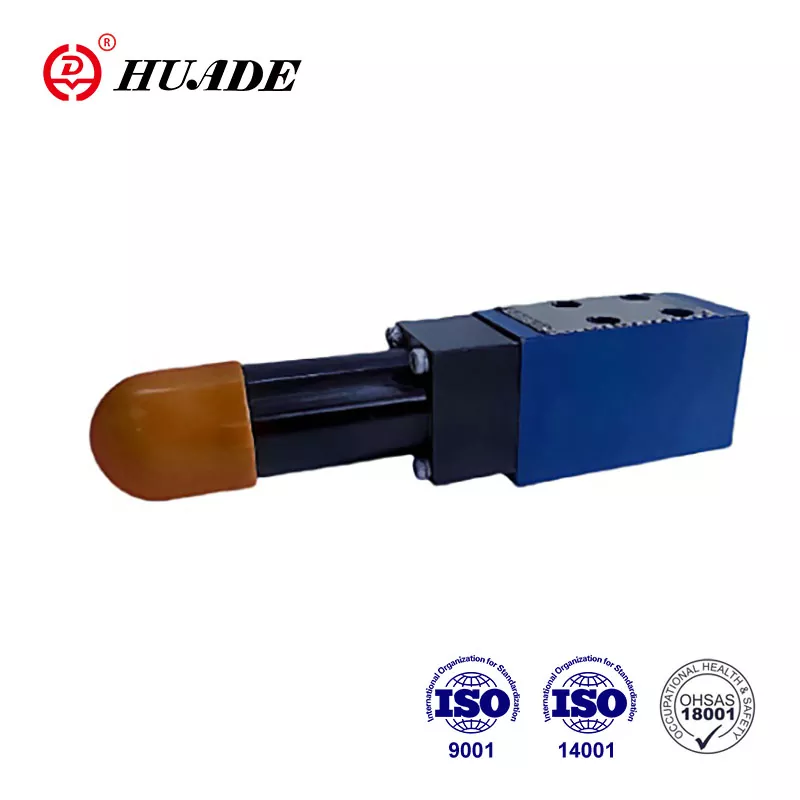

Pressure Sequence Valve DZ 5 DP

MANUFACTURER Genuine Huade Hydraulic
STANDARDS ISO 4401 / DIN 24340
AVAILABILITY Factory Direct Stock
Pressure Sequence Valve DZ 5 DP
TECHNICAL REPLACEMENT NOTICE

This Huade® directional control valve serves as a 100% direct drop-in replacement for Bosch Rexroth PRESSURE-SEQUENCE-VALVE-DZ-5-DP equivalents. Dimensions, mounting interfaces, and technical parameters are identical. Designed for cost reduction in industrial and mobile hydraulic systems.

• Product features: Direct operated design, Rexroth-compatible technology, 5 pressure ranges with 4 different setting elements
• Specifications: DZ 5 DP series, inlet pressure up to 210 MPa, max flow 30 L/min, subplate mounting
• Applications: Lifting and transportation machinery, construction equipment, industrial vehicles, machine tools, ships, metallurgy systems

Request B2B Quote

Submit your target quantity and technical questions. Our hydraulic engineering team will provide a factory-direct quote and lead time estimate within 24 hours.

Send Product Inquiry →
💬 WhatsApp: +86-18217786775
✓
100% Genuine Huade Direct factory authorized supply
✓
ISO 4401 Mounting ISO 4401 / Rexroth interchangeable
✓
Secure Packaging Sealed rust-proof global shipping

Technical Data Sheet

  • Product Overview
  • Features & Applications
  • Technical Parameters

Product Overview

Pressure Sequence Valve DZ 5 DP are used to direct oil to a second system at a set pressure.

Due to the introduction of Rexroth's advanced technology, Huade® hydraulic valves are compatible with Rexroth in performance and quality. The price is more reasonable. The factory has advanced production equipment and strict testing systems from all over the world to ensure the superior performance of the products.

up to 210; without non-return valve up to 31.5

Mineral oil (for NBR seal),or phosphate ester (for FPM seal)

Fluid cleanliness Maximum permissible degree of contamination of the fluid to NAS 1638 Class 9

Key Features

  • For subplate mounting
  • Front flange mounting
  • 5 pressure ranges
  • 4 different setting elements
  • Rotary knob
  • Sleeve with hexagon and protective cap
  • Lockable rotary knob with scale
  • Rotary knob with scale
  • Optional non return valve
  • Mounting pattern to DIN 24 340, form C for subplates

Industrial Applications

  • This DZ 5 DP pressure sequence valve can be widely used in hydraulic systems of lifting and transportation machinery, construction machinery, industrial vehicles, machine tools, ships, metallurgy and other equipment.
  • Section and symbol of Pressure Sequence Valve DZ 5 DP
  • Valves type DZ 5 DP are direct operated sequence valves. Valves of this type consist basically of the housing (1), control spool (2), springs (3) and pressure setting element (4), and additionally non-return valve (5) if required.
  • The pressure at which the valve passes oil is set at the pressure setting element (4).The springs (3) hold the control spool(2) in the starting position, and the valve remains closed. The pressure in port P passes via drilling (6) and jet (7) on to the spool operating area at the opposite end to the control springs (3).
  • When pressure in port P reaches the set value, the spool moves against the spring to connect port P to port A.
  • The signal for this passes internally via drilling (6) from port P.
  • Oil now passes to the system connected to port A, but the pressure in port P does not fall.
  • The pilot oil may also be fed externally via port B(X).
  • Depending on the application of the valve, the pilot oil return may be externally via port T(Y) or internally.
  • In order to allow free return flow of the oil from port A to port P, non-return valve(5) may be included if required.
  • structure of DZ5DP-3-10B
  • Symbols of  DZ 5 DP-10B

Technical Parameters

Mechanical ratings and operating limits for the Pressure Sequence Valve DZ 5 DP:

Parameter / Dimension Name Value / Rating Specification
Technical Data Technical Data
Inlet pressure,port P, B (X） (MPa) up to 210; without non-return valve up to 31.5
Outlet pressure,port A (MPa) to 31.5
Back pressure,port T  (MPa) to 6.0
Max.permissible flow (L/min) to 30
Fluids Mineral oil (for NBR seal),or phosphate ester (for FPM seal)
Viscosity range(mm ²/s) 10~800
Fluid temperature range(℃) -30 up to +80
Fluid cleanliness (um) Fluid cleanliness Maximum permissible degree of contamination of the fluid to NAS 1638 Class 9
