2-Way Flow Control Valve Rexroth Interchangeable

Flow Control Valve 2FRM 5

MANUFACTURER Genuine Huade Hydraulic
STANDARDS ISO 4401 / DIN 24340
AVAILABILITY Factory Direct Stock

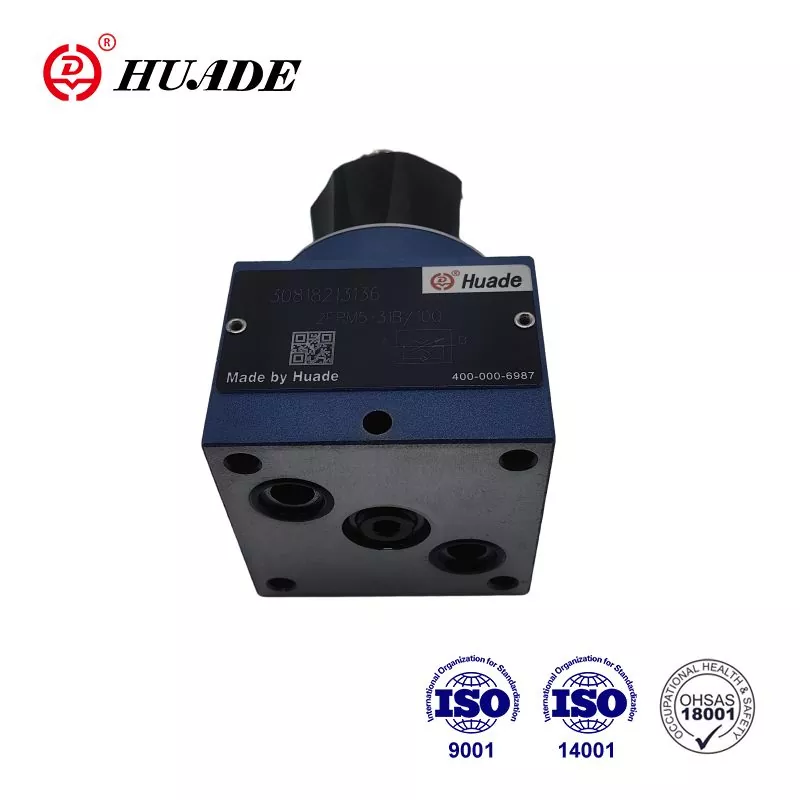

Flow Control Valve 2FRM 5

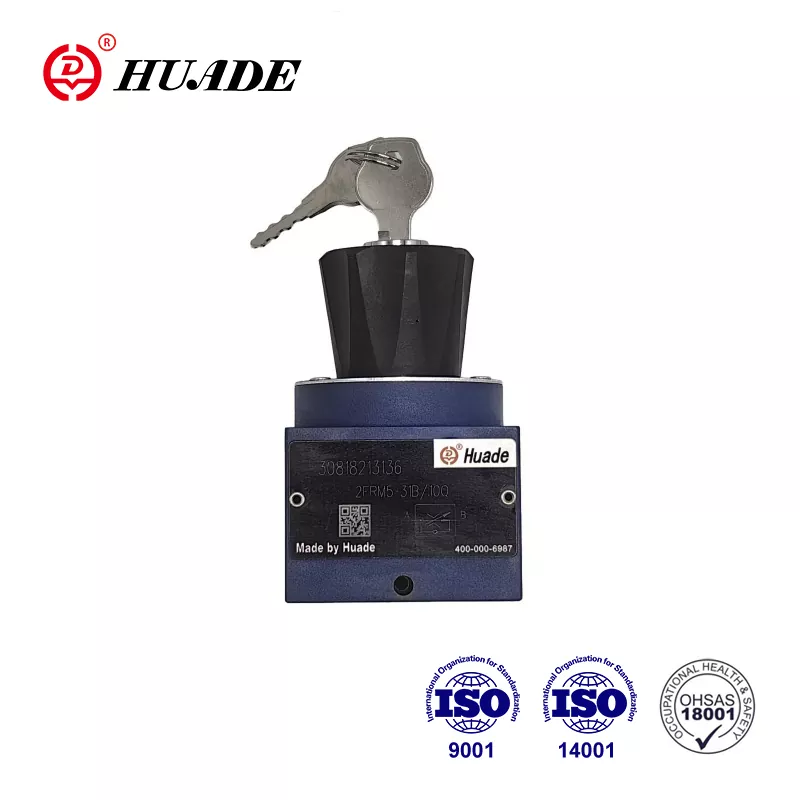

Flow Control Valve 2FRM 5 - Image 2

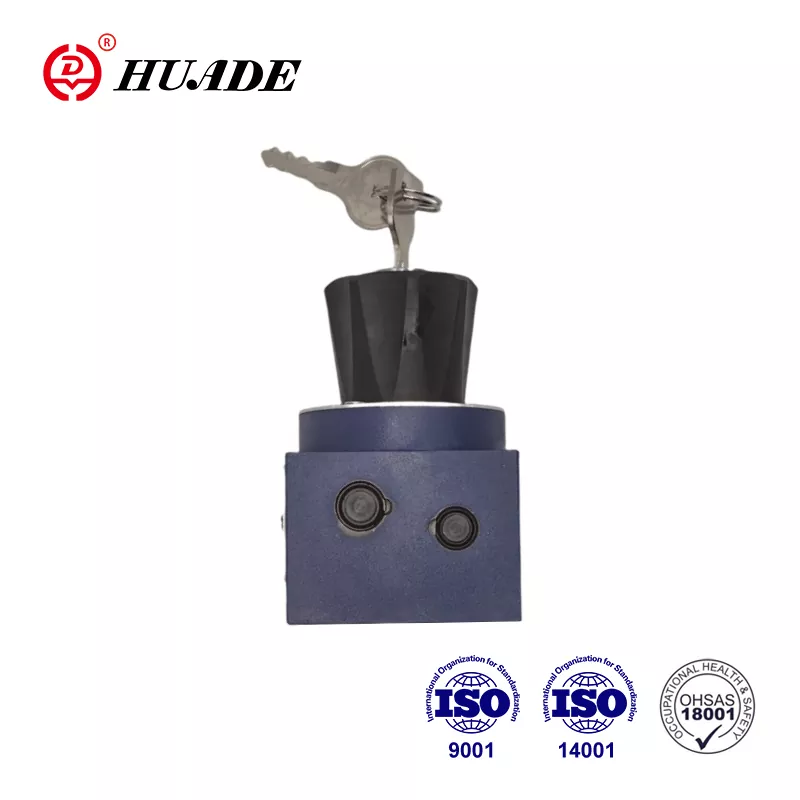

Flow Control Valve 2FRM 5 - Image 3

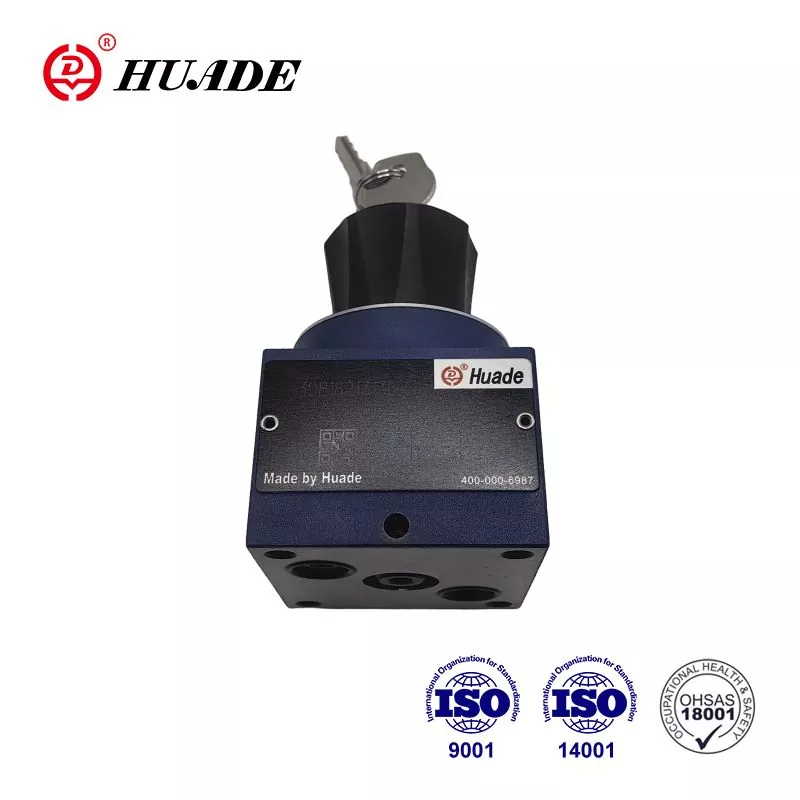

Flow Control Valve 2FRM 5 - Image 4
TECHNICAL REPLACEMENT NOTICE

This Huade® directional control valve serves as a 100% direct drop-in replacement for Bosch Rexroth FLOW-CONTROL-VALVE-2FRM-5 equivalents. Dimensions, mounting interfaces, and technical parameters are identical. Designed for cost reduction in industrial and mobile hydraulic systems.

• Product features: Decrease of start-up jump

• Specifications: 2FRM 5 series,

• Applications:throttling

Request B2B Quote

Submit your target quantity and technical questions. Our hydraulic engineering team will provide a factory-direct quote and lead time estimate within 24 hours.

Send Product Inquiry → 📥 Download PDF Datasheet
💬 WhatsApp: +86-18217786775
✓
100% Genuine Huade Direct factory authorized supply
✓
ISO 4401 Mounting ISO 4401 / Rexroth interchangeable
✓
Secure Packaging Sealed rust-proof global shipping

Technical Data Sheet

  • Product Overview
  • Features & Applications
  • Technical Parameters

Product Overview

The 2FRM flow valve is a 2-way flow control valve. It is used for throttling. Huade® is indeed a trustworthy brand in China. Through two long-term cooperation with Rexroth, Huade® flow control valves are compatible with the same series offered by Rexroth. Whether in product quality, technological innovation, customer service or brand reputation, Huade Hydraulic has performed well and won wide reputation from the market and consumers.

Mineral oil(for NBR seal),or phosphate ester(for FPM seal)

∆p with free return flow B → A, qv -dependent (MPa)

Key Features

  • Porting pattern to DIN 24 340,from A,ISO 4401and CETOP - RP 121H
  • Pressure compensator stroke limiter, optional
  • Decrease of start-up jump
  • Flow control in both directions using a rectifier sandwich plate
  • Lockable rotary knob

Industrial Applications

  • Flow control valve, type 2FRM is a 2-way flow control valve, which is used for throttling and is not affected by pressure and temperature.
  • The 2-way flow control valve 2FRM mainly consists of housing(1), setting element(2), orifice(3), pressure compensator (4) optionally with stroke limiter as well as check valve(5) and is used for the throttling of a flow at low pressure and temperature dependency.
  • The throttling cross section is set by the rotation of the curve bolt(7).To keep the flow constant independent from the pressure at the throttling point(8) a pressure compensator (4)is connected. The temperate independence is the result of the throttling point being constructed as an orifice.
  • The free flow return from B to A is via the check valve(5).
  • In order to reach a controlled through flow of the valve in either direction there is the possibility to install a rectifier sandwich plate type Z4S below the flow control valve.
  • Structure of Flow Control Valve 2FRM 5
  • Symbol of Flow Control Valve 2FRM 5

Technical Parameters

Mechanical ratings and operating limits for the Flow Control Valve 2FRM 5:

Parameter / Dimension Name Value / Rating Specification
General General
Hydraulic fluid Mineral oil(for NBR seal),or phosphate ester(for FPM seal)
Temperature range(℃) -30 to+80
Viscosity range(mm ²/s) 10 to 800
