Directional Control Valve Rexroth Interchangeable

Directional Control Valve WE 4 for Rexroth

MANUFACTURER Genuine Huade Hydraulic
STANDARDS ISO 4401 / DIN 24340
AVAILABILITY Factory Direct Stock
Directional Control Valve WE 4 for Rexroth

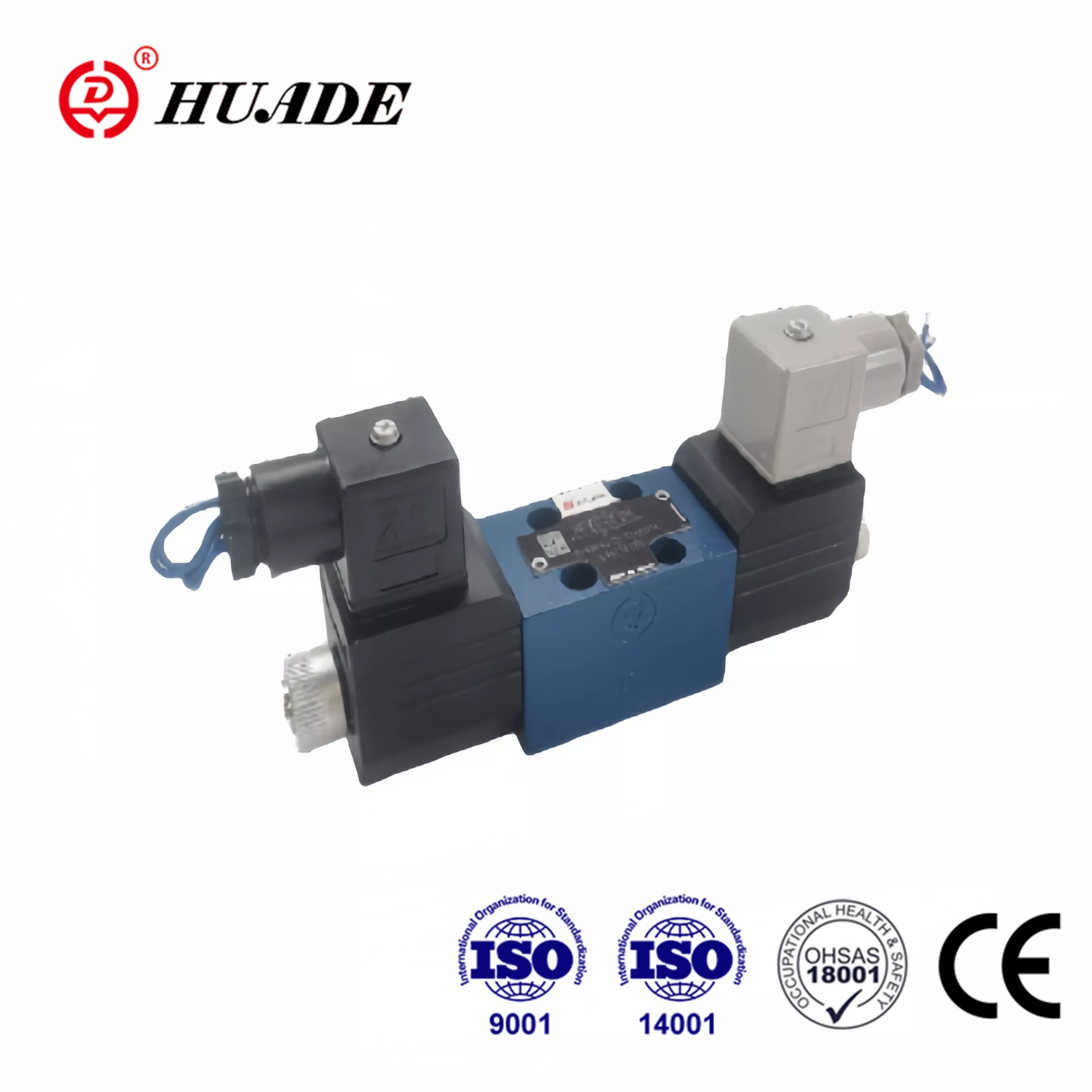

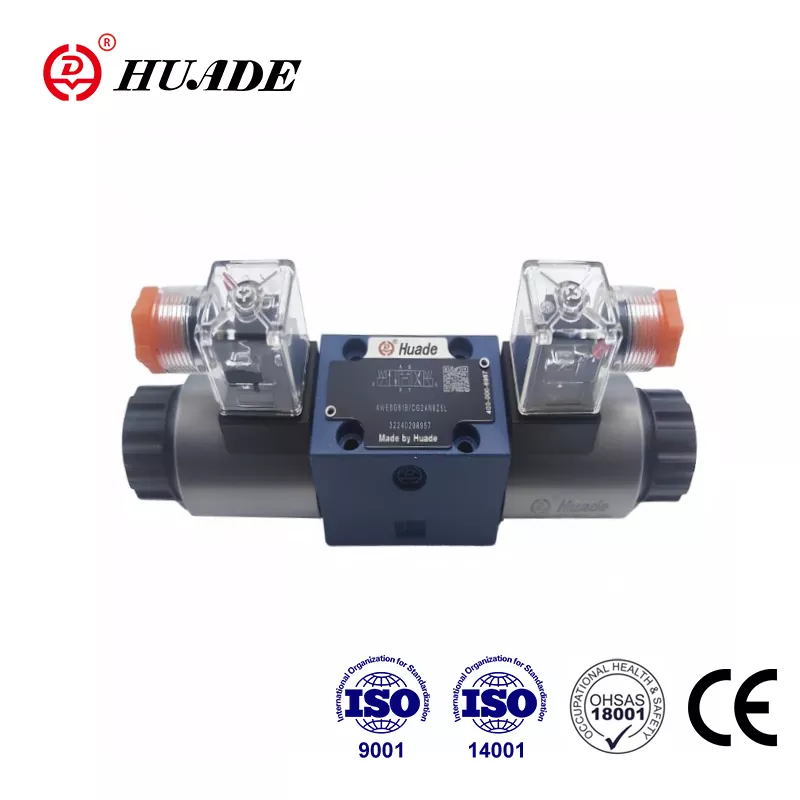

Directional Control Valve WE 4 for Rexroth - Image 2
TECHNICAL REPLACEMENT NOTICE

This Huade® directional control valve serves as a 100% direct drop-in replacement for Bosch Rexroth DIRECTIONAL-CONTROL-VALVE-WE-4-FOR-REXROTH equivalents. Dimensions, mounting interfaces, and technical parameters are identical. Designed for cost reduction in industrial and mobile hydraulic systems.

• Product features: Solenoid-operated spool valve, Rexroth-compatible design, CE certified, wet pin solenoids
• Specifications: Max pressure 21MPa, flow up to 25L/min, ISO 4401 porting pattern
• Applications: Engineering machinery, metallurgy, machine tools, environmental protection, shipbuilding, aerospace

Request B2B Quote

Submit your target quantity and technical questions. Our hydraulic engineering team will provide a factory-direct quote and lead time estimate within 24 hours.

Send Product Inquiry → 📥 Download PDF Datasheet
💬 WhatsApp: +86-18217786775
✓
100% Genuine Huade Direct factory authorized supply
✓
ISO 4401 Mounting ISO 4401 / Rexroth interchangeable
✓
Secure Packaging Sealed rust-proof global shipping

Technical Data Sheet

  • Product Overview
  • Features & Applications
  • Technical Parameters

Product Overview

Strategic cooperation between the Chinese and German governments from 1979, Huade has incorporated cutting-edge technology from Rexroth. Huade® WE 4 directional spool valve is an affordable alternative to the same model offered by Rexroth. Huade puts great stress on the quality. Huade has a strict testing system to ensure that every directional valve has superior performance. The solenoid valve series has passed CE certification. Huade® hydraulic valves are widely used in engineering and construction machinery, metallurgy, machine tools, environmental protection, shipbuilding, aerospace, rail transit, petroleum and petrochemical, military industry and other fields. It is a reliable national brand in China.

Max.operating pressure-Ports A,B,P （㎫）

10.0 .With symbols A or B port T must be used as leakage port when the operating pressure is above the permissible tank pressure

Pressure fluid temperature range （℃）

Maximum permissible degree of contamination of the hydraulic fluid to NAS 1638 class 9. We therefore recommend a filter with a minimum retention rate of β≥ 75

Valve with 1 solenoid 0.9 Valve with 2 solenoids 1.3

With electric connection the protective conductor (PE ) must be connected according to the relevant regulations

Key Features

  • Directional valves of type WE 4 are solenoid operated directional spool valves
  • Wet pin solenoids of direct or alternating current
  • Porting pattern to ISO 4401 and CETOP - RP 121H

Industrial Applications

  • Directional valves of type WE 4 are solenoid operated directional spool valves. They control the start, stop and direction of a fluid.
  • These directional valves basically consist of the housing(1), one or two solenoids (2), the control spool(3), and one or two return springs(4).
  • The control spool (3) is held by the return spring (4) in the central or in the initial position (except for detented spools). The control spool(3) is actuated via wet pin solenoids (2). In the energized condition. The force of the solenoid(2) acts via the plunger (5) on the control spool (3) and shifts the same from its rest position to the desired end position. Thus, the required flow pattern from P to A and B to Tor P to B and A to T is selected. When the solenoid(2) is de-energized, the control spool (3) is returned to its neutral
  • This version is a directional valve with 2 switching positions and position by the return spring (4). A covered manual override is provided so that the control spool (3)can be operated without
  • energizing the solenoid.
  • Cutaway view of 4WE 4-10B
  • Cartridge throttle

Technical Parameters

Mechanical ratings and operating limits for the Directional Control Valve WE 4 for Rexroth:

Parameter / Dimension Name Value / Rating Specification
Hydraulic technical data Hydraulic technical data
Max.operating pressure-Ports A,B,P （㎫） up to 21.0
Port T（㎫） 10.0 .With symbols A or B port T must be used as leakage port when the operating pressure is above the permissible tank pressure
Max.flow (L/min) up to 25
Pressure fluid Mineral oil or phosphate ester
Viscosity range    (mm2/s) 2.8 to 500
Pressure fluid temperature range （℃） -30～+80
Degree of contamination (㎛) Maximum permissible degree of contamination of the hydraulic fluid to NAS 1638 class 9. We therefore recommend a filter with a minimum retention rate of β≥ 75
Weight (kg) Valve with 1 solenoid 0.9 Valve with 2 solenoids 1.3
Electrical technical data Electrical technical data
Available voltages (V) 12. 24.220.110R 220R
Power consumption (W) 22
Duty continuous
Switching time - ON (ms) 20 to 30
Switching time - OFF (ms) 10 to 20
Max. ambient temperature（℃） +50
Max. coil temperature （℃） +150
Protection to DIN 40 050 IP65
Switching frequency (cycles/h) 15000
With electric connection the protective conductor (PE ) must be connected according to the relevant regulations With electric connection the protective conductor (PE ) must be connected according to the relevant regulations
