Directional Control Valve Rexroth Interchangeable

Directional Control Valve 4WE 6 J for Rexroth

MANUFACTURER Genuine Huade Hydraulic
STANDARDS ISO 4401 / DIN 24340
AVAILABILITY Factory Direct Stock

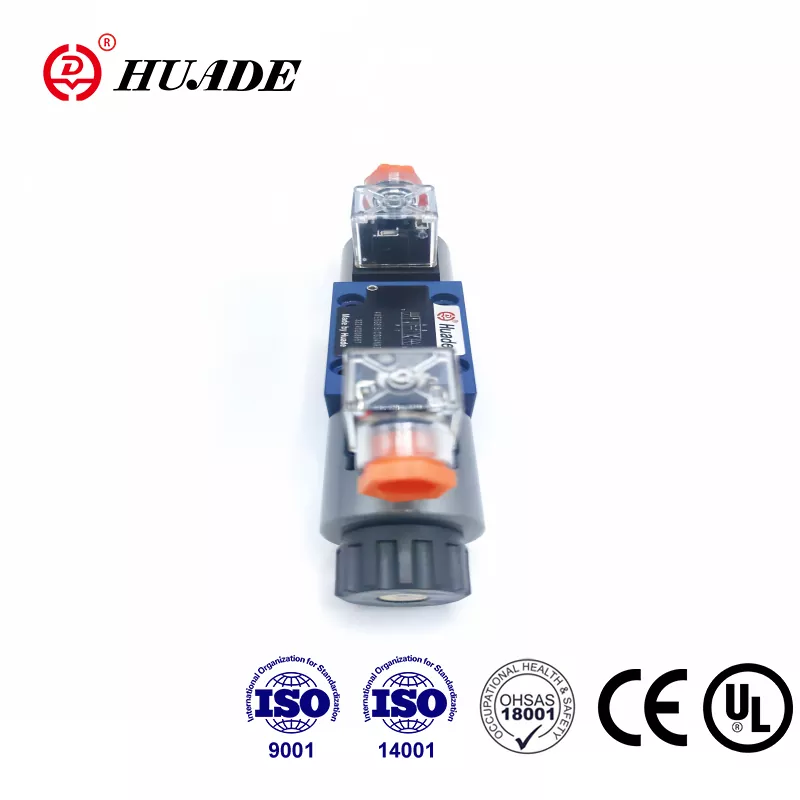

Directional Control Valve 4WE 6 J for Rexroth

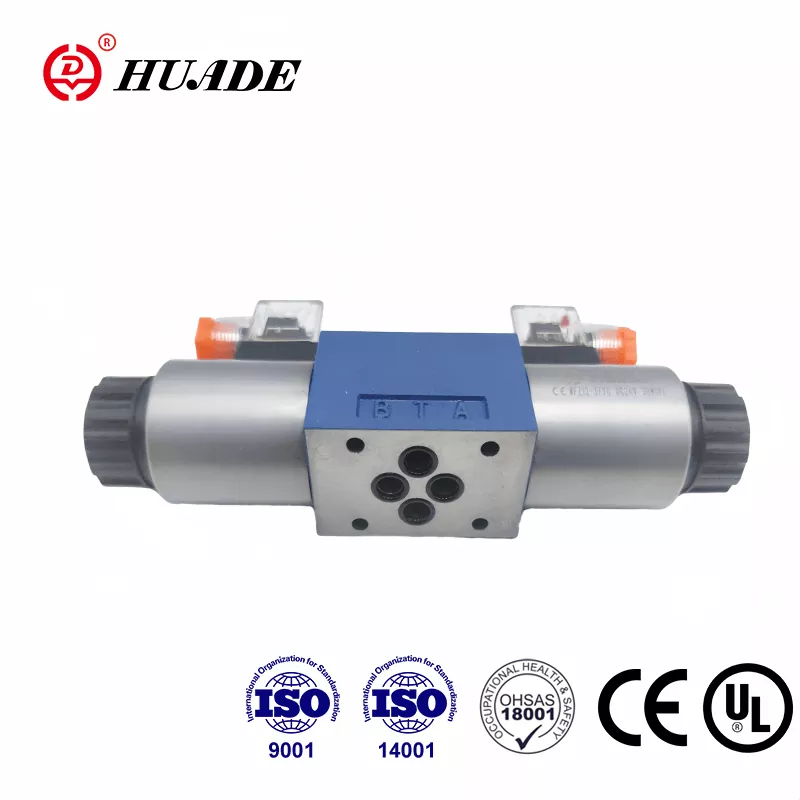

Directional Control Valve 4WE 6 J for Rexroth - Image 2

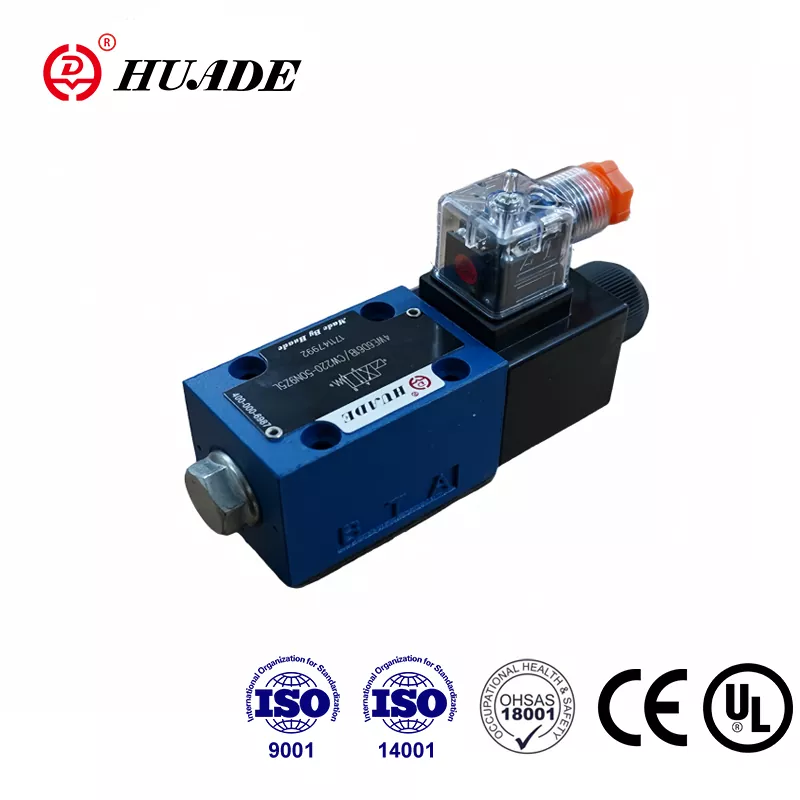

Directional Control Valve 4WE 6 J for Rexroth - Image 3

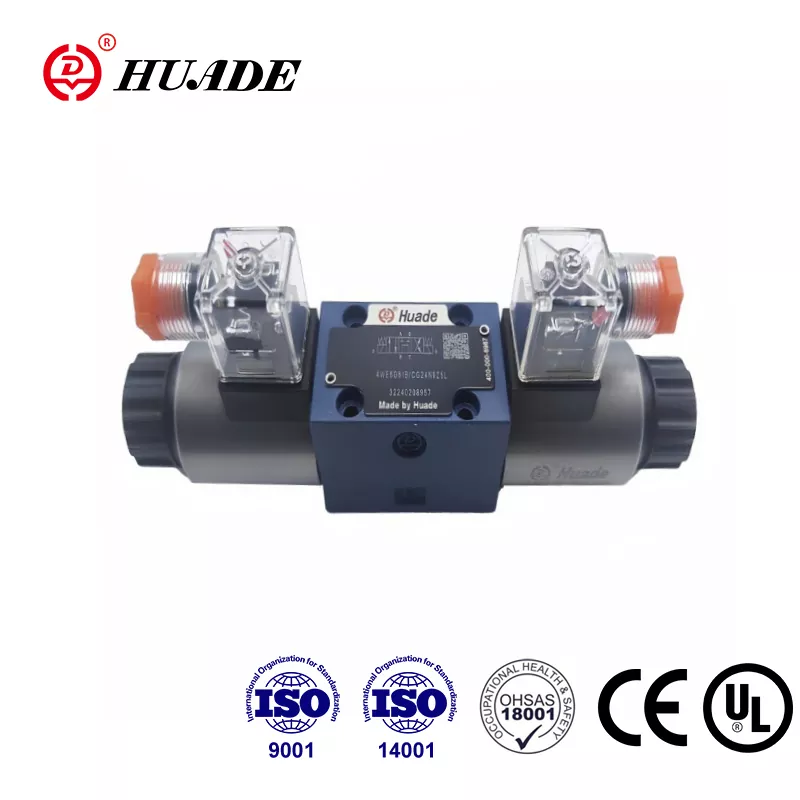

Directional Control Valve 4WE 6 J for Rexroth - Image 4
TECHNICAL REPLACEMENT NOTICE

This Huade® directional control valve serves as a 100% direct drop-in replacement for Bosch Rexroth DIRECTIONAL-CONTROL-VALVE-4WE-6-J-FOR-REXROTH equivalents. Dimensions, mounting interfaces, and technical parameters are identical. Designed for cost reduction in industrial and mobile hydraulic systems.

• Product features: Direct solenoid actuated, wet pin DC/AC solenoids with removable coil, Rexroth-compatible design
• Specifications: Max pressure 35MPa, max flow 80L/min, CE certified, IP65 protection
• Applications: Industrial hydraulic systems for controlling fluid start, stop and directionRetryClaude can make mistakes. Please double-check responses.

Request B2B Quote

Submit your target quantity and technical questions. Our hydraulic engineering team will provide a factory-direct quote and lead time estimate within 24 hours.

Send Product Inquiry → 📥 Download PDF Datasheet
💬 WhatsApp: +86-18217786775
✓
100% Genuine Huade Direct factory authorized supply
✓
ISO 4401 Mounting ISO 4401 / Rexroth interchangeable
✓
Secure Packaging Sealed rust-proof global shipping

Technical Data Sheet

  • Product Overview
  • Features & Applications
  • Technical Parameters

Product Overview

Beijing Huade Hydraulic Industrial Group is a renowned state-owned company specializing in the design , manufacturing and service of hydraulic valves and equipment. Huade® 4WE 6 J solenoid directional valve can replace the same model offered by Rexroth due to twice long-term cooperation with Rexroth from 1979. The solenoid directional valve WE 6 series has passed CE certification. Huade puts great stress on the quality to ensure that every directional valve has superior performance. R&D and production management system meets ISO9001, ISO14001, and ISO45001. Huade® hydraulic valves are widely used in the military industry and other fields in China due to stable performance. It is a reliable national brand in China.

Max.operating pressure Ports A,B,P    (Mpa)

Port T                                                (㎫)

with symbols A and B, port T must be used as a drain port if the operating pressure is above the permitted tank pressure.

Max.flow                                         (L/min)

Viscosity range                              (mm2/s)

Pressure fluid temperature range     （℃）

Maximum permissible degree of contamination of hydraulic fluid to NAS 1638 class9. We therefore recommend a filter with a minimum retention rate of β10≥75

With electrical connections the protective conductor (PE) must be connected according to the relevant regulations

Key Features

  • Direct solenoid actuated directional spool valve high performance version
  • Wet pin DC or AC solenoids with removable coil
  • Hand override, optional
  • Solenoid coil can be rotated through 90°
  • It is not necessary to open the pressure tight chamber when changing the coil
  • Electrical connections either as individual or central connections
  • Porting pattern to Din 24 340 form A, ISO 4401 and CETOP - RP 121H

Industrial Applications

  • Solenoid operated Directional valves of type 4WE 6 J control the start, stop and direction of a fluid.
  • Essentially the directional control valves 4WE 6 consist of housing (1),one or two solenoids (2), the control spool(3), and one or two return springs (4). In the de-energized condition the control spool (3)is held in the neutral or initial position by means of return springs (4) (except for impulse spools).The control spool (3) is actuated via wet pin solenoids (2). The force of the solenoids (2)acts via the plunger (5) on the control spool (3)and pushes this from its neutral position to the required end position.This gives free-flow from P to A and B to T or P to B and A to T.
  • When solenoid (2) is de-energized, the control spool (3) is returned to its neutral position by means of the return springs (4).
  • An optional hand override (6), allows movement of the control spool (3) without energising the solenoid.
  • Structure diagram of WE 6 61B series

Technical Parameters

Mechanical ratings and operating limits for the Directional Control Valve 4WE 6 J for Rexroth:

Parameter / Dimension Name Value / Rating Specification
Hydraulic Hydraulic
Max.operating pressure Ports A,B,P    (Mpa) - up to 35.0 up to 35.0
Port T                                                (㎫) - with symbols A and B, port T must be used as a drain port if the operating pressure is above the permitted tank pressure. with symbols A and B, port T must be used as a drain port if the operating pressure is above the permitted tank pressure.
Max.flow                                         (L/min) - 80(-);60(～) 80(-);60(～)
Pressure fluid - Mineral Oils or Phosphate Ester Mineral Oils or Phosphate Ester
Viscosity range                              (mm2/s) - 2.8~500 2.8~500
Pressure fluid temperature range     （℃） - -30～+80 -30～+80
Degree of contamination - Maximum permissible degree of contamination of hydraulic fluid to NAS 1638 class9. We therefore recommend a filter with a minimum retention rate of β10≥75 Maximum permissible degree of contamination of hydraulic fluid to NAS 1638 class9. We therefore recommend a filter with a minimum retention rate of β10≥75
Electrical Electrical
Voltage type - DC AC 50/60Hz
Available voltages (V) - 12, 24, 42, 60, 96 42, 110, 120, 230
Available voltages (V) - 110, 180, 205, 220 50/60Hz
Holding power (VA) - - 50
Switch-on power (VA) - - 220
Duty - continuous continuous
Switching time to IS0 6403 - ON (ms) - 25 to 45 10 to 20
Switching time to IS0 6403 - OFF (ms) - 10 to 25 15 to 40
Protection to DIN - IP 65 IP 65
Switching frequency (cycles/h) - up to 15000 up to 7200
With electrical connections the protective conductor (PE) must be connected according to the relevant regulations With electrical connections the protective conductor (PE) must be connected according to the relevant regulations
