FD Check-Q-Meter Valve Rexroth Interchangeable

Check-Q-Meter Valve FD 12

MANUFACTURER Genuine Huade Hydraulic
STANDARDS ISO 4401 / DIN 24340
AVAILABILITY Factory Direct Stock

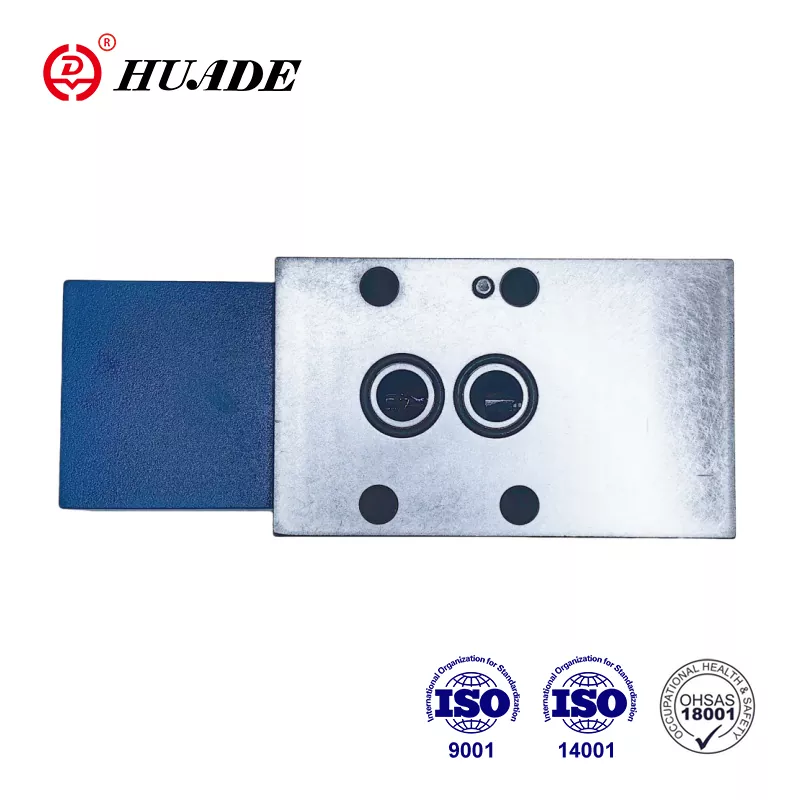

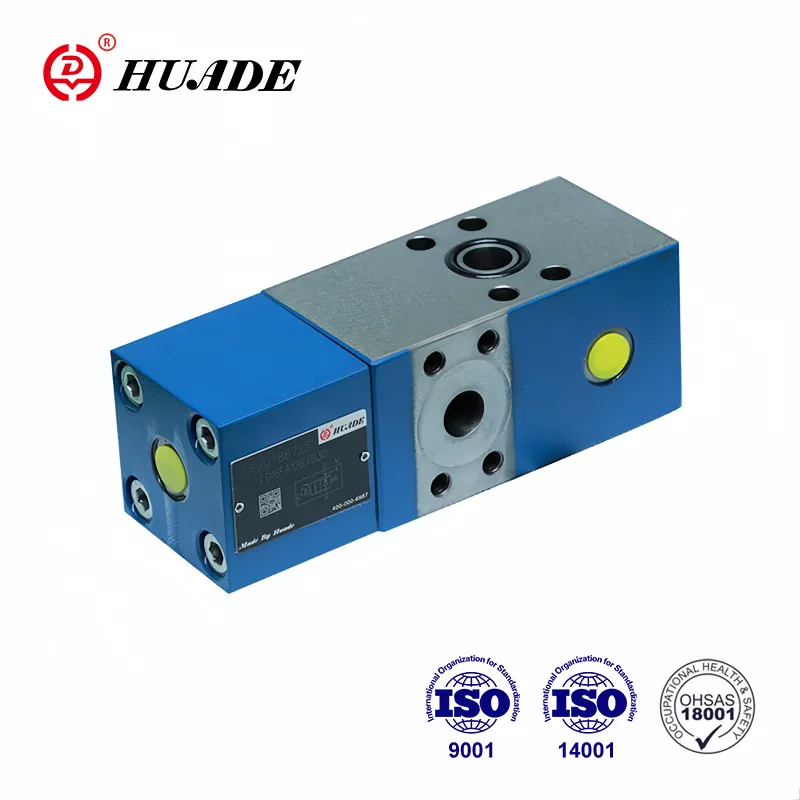

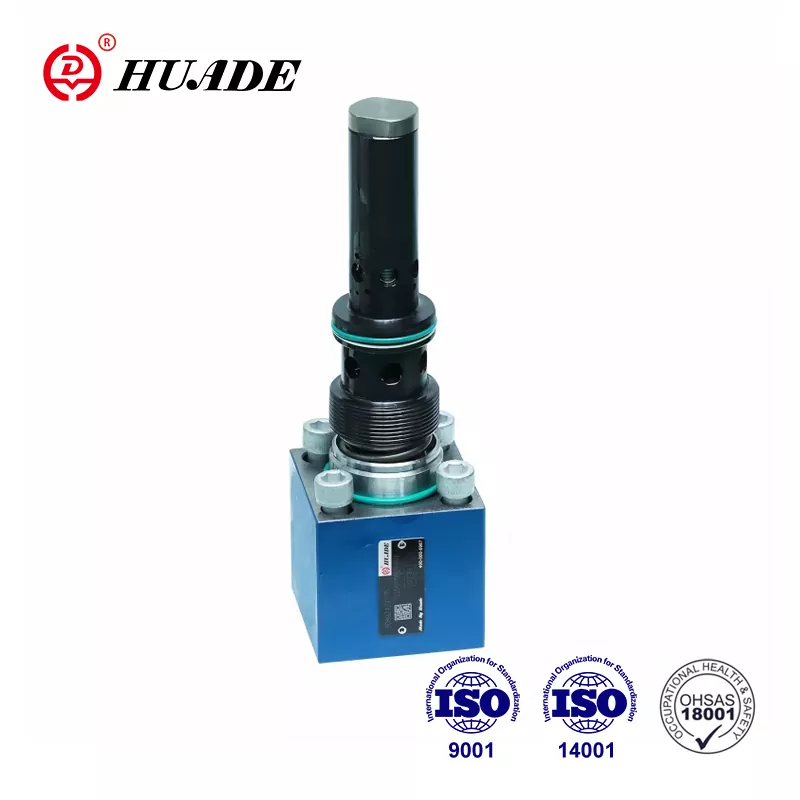

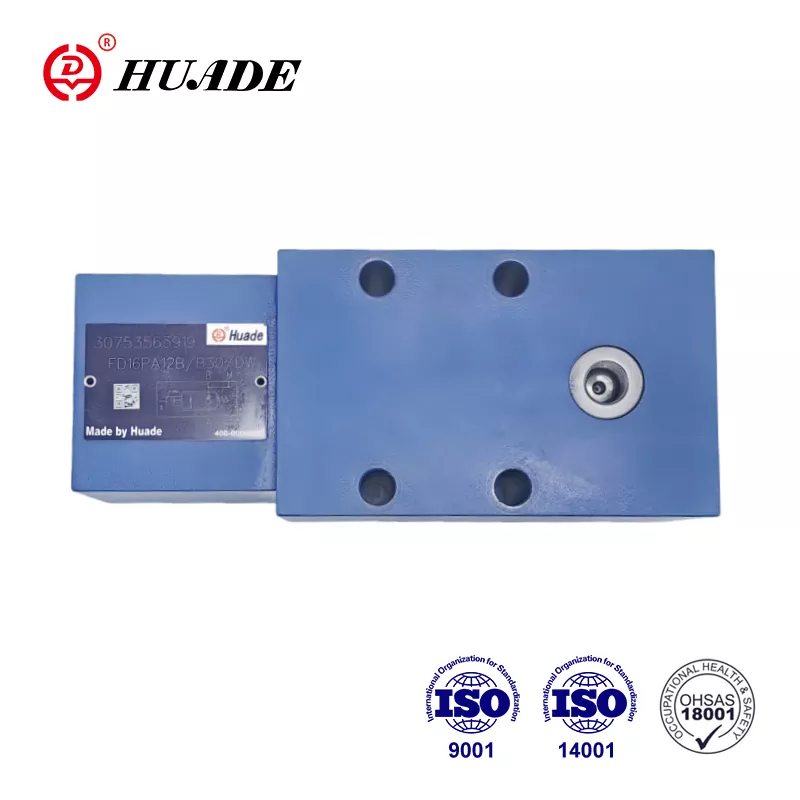

Check-Q-Meter Valve FD 12
Check-Q-Meter Valve FD 12 - Image 2
Check-Q-Meter Valve FD 12 - Image 3
Check-Q-Meter Valve FD 12 - Image 4
TECHNICAL REPLACEMENT NOTICE

This Huade® directional control valve serves as a 100% direct drop-in replacement for Bosch Rexroth CHECK-Q-METER-VALVE-FD-12 equivalents. Dimensions, mounting interfaces, and technical parameters are identical. Designed for cost reduction in industrial and mobile hydraulic systems.

• Product features: Optional built

• Specifications: FD 12 series,

• Applications: cylinders independent of the load

Request B2B Quote

Submit your target quantity and technical questions. Our hydraulic engineering team will provide a factory-direct quote and lead time estimate within 24 hours.

Send Product Inquiry → 📥 Download PDF Datasheet
💬 WhatsApp: +86-18217786775
✓
100% Genuine Huade Direct factory authorized supply
✓
ISO 4401 Mounting ISO 4401 / Rexroth interchangeable
✓
Secure Packaging Sealed rust-proof global shipping

Technical Data Sheet

  • Product Overview
  • Features & Applications
  • Technical Parameters

Product Overview

The flow valve FD 12 is used in the hydraulic system to control the speed of the hydraulic motor and cylinder. It has high quality and cheap price. Huade Hydraulic successfully controls the cost of products and provides customers with affordable hydraulic FD  check-Q-meter valves. One of the reasons for good quality is that Huade Hydraulic has a good inspection system. The factory has introduced more than 750 advanced equipment from all over the world. All the flow valves provided by Huade Hydraulic meets the international standards.

Pilot pressure, port X (flow control range) (MPa)

Setting pressure for secondary pressure relief valve (MPa)

80 (size12) 200 (size16) 320 (size25) 560 (size32)

poppet seat area/area of pilot spool=1/20

Mineral oil(for NBR seal),or phosphate ester(for FPM seal)

Key Features

  • Porting pattern to DIN 24 340, from D,ISO 5781 and CETOP - RP 121H
  • Pilot operated check valve, leak-free. The check-Q-meter controls the returning flow Q2 in relation to the flow being directed into the opposite side of the actuator Q1 with cylinders the area ratio ( Q2=Q1φ ) has to be taken into account.
  • By-pass valve, free-flow in opposite direction
  • Optional built-in secondary pressure relief valve (only for valve with flange connections).

Industrial Applications

  • Check-Q-meters valves FD12 are used in hydraulic systems to influence the speeds of hydraulic motors and cylinders independent of the load (prevents running away). In addition there is an isolated function for pipe burst safety.
  • The check-Q-meter comprises basically of the housing (1), main poppet (2), pilot part(3), pilot spool (4), damping spool(5) and pilot damping (6).
  • Structure of Check-Q-Meter Valve FD 12
  • Symbol of Check-Q-Meter Valve FD 12
  • Circuit examples
  • Note:
  • Two check-Q-meters cannot be used to control two cylinders which are forced mechanically to move together, as synchronization and the same pressure cannot be guaranteed in each cylinder.
  • Therefore, the cylinders have to be equipped with two pilot operated check valves, type SL.The check-Q-meter is fitted in a common line.
  • In this case, the load pressure must not exceed 20MPa!

Technical Parameters

Mechanical ratings and operating limits for the Check-Q-Meter Valve FD 12:

Parameter / Dimension Name Value / Rating Specification
Operating pressure, ports A, X (MPa) to 31.5
Operating pressure. port B (MPa) to 42
Pilot pressure, port X (flow control range) (MPa) min.2to3.5, max.31.5
Cracking pressure, A to B (MPa) 0.2
Setting pressure for secondary pressure relief valve (MPa) to 40
Flow (L/min) 80 (size12) 200 (size16) 320 (size25) 560 (size32)
Area ratio of the pre-opening poppet seat area/area of pilot spool=1/20
Pressure fluid temperature range(℃) -30 to+80
Viscosity range(mm ²/s) 10 to 800
Pressure fluid   Mineral oil(for NBR seal),or phosphate ester(for FPM seal)
